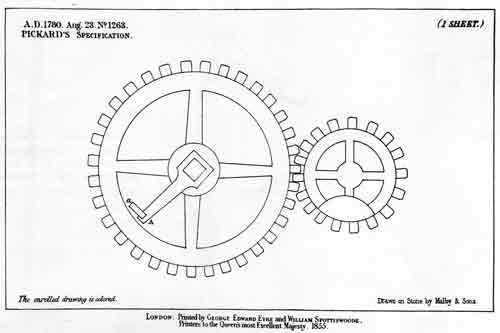

Drawing from James Pickard’s patent no. 1263, 1780

Pickard’s patent drawing, as printed by the Patent Office in 1855. The crank (marked A) sits on the big wheel; the small wheel, turning twice for each stroke, was to carry a heavy counterweight. It was this counterweight arrangement, not the crank, that the patent claimed.
